Nama: |
Katrol Konduktor Tunggal |
Bahan: |
Mc Nilon |
Lamar Untuk: |
Merangkai ACSR 25 Ke ACSR 500 |
Beban Pemutusan: |
15-60kn |
Digunakan: |
Ereksi Menara |
Lisensi: |
CE ISO |

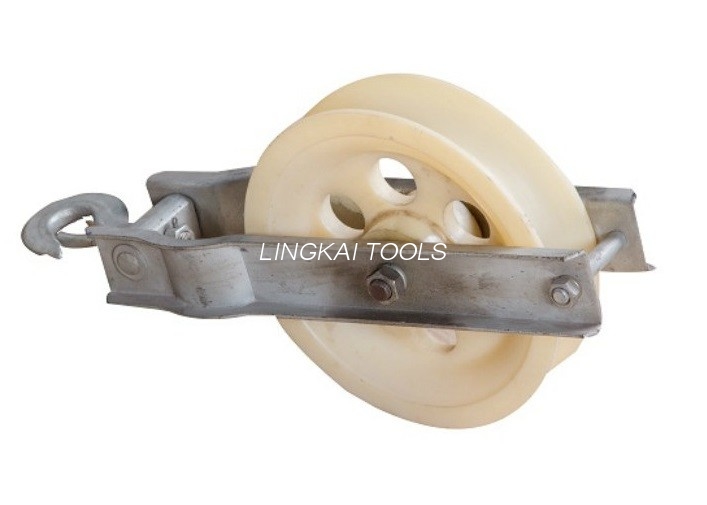

Katrol Konduktor Tunggal MC Nylon Sheave untuk Merangkai ACSR 25 hingga ACSR 500
| Nomor pesanan | Model | Konduktor yang cocok | Beban putus (kg) | Berat (kg) | Fitur |
| 10171 | SHD-120×30 | ACSR2570 | 15 | 1.5 | lapisan aluminium |
| 10172 | SHD-160×40 | ACSR95120 | 30 | 2.5 | |
| 10173 | SHD-200×40 | ACSR150240 | 45 | 4 | |
| 10174 | SHD-200×60 | ACSR150240 | 45 | 4.6 | |
| 10175 | SHD-250×40 | ACSR150240 | 60 | 4.6 | |
| 10176 | SHD-250×60 | ACSR300400 | 60 | 6 | |
| 10177 | SHD-270×60 | ACSR300400 | 60 | 7 | |
| 10178 | SHD-320×60 | ACSR300400 | 60 | 9.5 | |
| 10179 | SHD-400×80 | ACSR400500 | 60 | 15 | |
| 10191 | SHDN-120×30 | ACSR2570 | 15 | 1.5 | lapisan nilon |
| 10192 | SHDN-160×40 | ACSR95120 | 30 | 2.5 | |
| 10193 | SHDN-200×40 | ACSR150240 | 45 | 3.6 | |
| 10194 | SHDN-200×60 | ACSR150240 | 45 | 4 | |
| 10195 | SHDN-250×40 | ACSR150240 | 60 | 4 | |
| 10196 | SHDN-250×60 | ACSR300400 | 60 | 4.5 | |
| 10197 | SHDN-270×60 | ACSR300400 | 60 | 5.6 | |
| 10198 | SHDN-320×60 | ACSR300400 | 60 | 6.7 | |
| 10199 | SHDN-400×80 | ACSR400500 | 60 | 13 |
